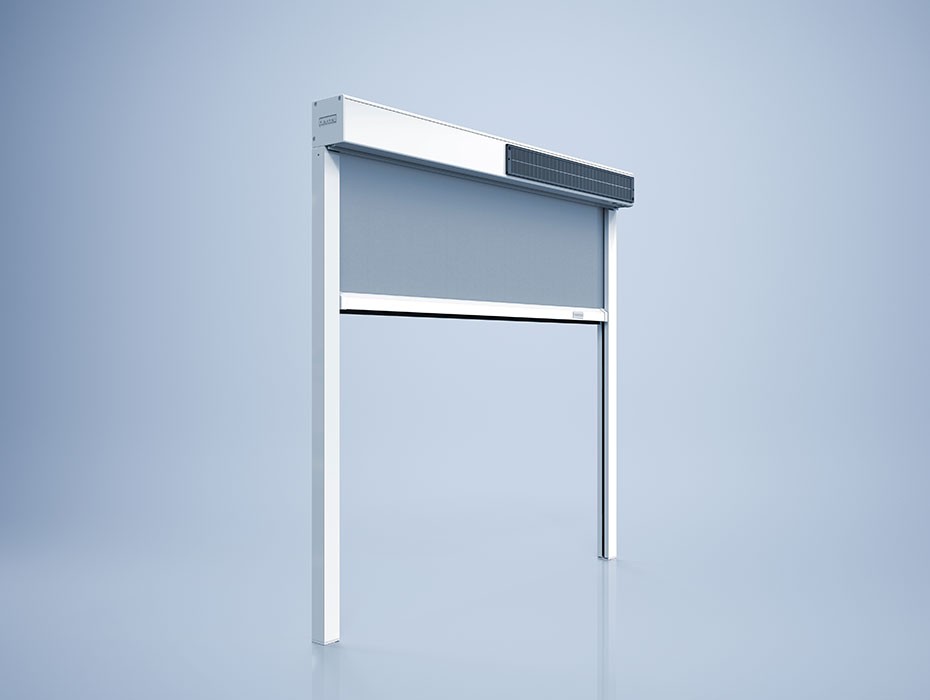

heroal Ready VS Z Solar - heroal Motor

Pre-assembled textile zip screen with solar drive

The heroal VS Z Solar prefabricated sun protection element with heroal solar drive combines the benefits of a textile zip-screen system with an energy self-sufficient solar drive. Installation is quick, easy and no power supply is needed – perfect for retrospective installation. With the heroal motor (10 Nm) and integrated battery, in connection with a size 54 aluminium axle in an 85 mm shutter box, maximum element sizes of 2,000 x 2,200 mm can be manufactured. Areas of up to 7.5 m2 can be produced, with a maximum width of 3,000 mm and height of 3,000 mm (size 63 steel axle in a 95 mm shutter box). The system is controlled wirelessly using either a remote control or a wall button. Over 250 high-quality fabric types and colours offer maximum design freedom. The zip-guided system provides exceptional wind stability up to 145 km/h.

  • Quick and easy installation without a power supply
  • Ideal for retrofitting
  • High wind stability up to 145 km/h

    Product Details

  • Processing advantages & product details

    Sustainability

    Sun protection systems with an energy self-sufficient solar motor ensure healthy living and working with a pleasant indoor climate on hot days – without any cooling and heating costs. The textile zip screens made of recycled aluminium and high-quality textiles are also weather-resistant and set themselves apart with their excellent material stability and exceptional durability.

    Flexibility

    The heroal solar motor can be controlled with a radio remote control (433 MHz). Several elements of the heroal VS Z Solar can be combined into groups that can be operated via a hand-held/wall-mounted transmitter. For maximum flexibility, the solar motors used in the heroal VS Z Solar are equipped with an integrated li-ion battery. If there is not a sufficient amount of sunshine, the curtain can still run for up to 100 cycles. Alternatively, the batteries can also be charged via an external interface.

    Depending on requirements and utilisation, the heroal VS Z Solar with heroal solar motor can be ordered as system product or a prefabricated element (heroal Ready).

    Comfort

    The heroal Ready VS Z provides optimum glare, UV and heat protection as well as privacy and can also be used in place of an insect screen. Thanks to its innovative zip technology, heroal VS Z is particularly stable in the guide rail and can withstand wind velocities of up to 145 km/h.

    Design

    The aluminium components of the Ready VS Z are coated with the highly weather-resistant heroal hwr powder coating – for perfect colour matching with the heroal window, door, sliding door, curtain wall and roofing systems. More than 200 different textiles in the standard portfolio provide maximum design freedom. Even large elements can be implemented with a small box.

  • Brochures & test certificates

    Test certificates
    Test certificate
  • Dimensions & drawings

    Element

    Max. Elementwidth [mm]
    3.000
    Max. Elementheight [mm]
    3.000
    Max. area [m2]
    7,5
  • Performance characteristics

    145 km/h Wind resistance
  • CAD & BIM data

  • Tender texts
