Door systems

Aluminium door systems for every requirement

heroal door systems stand out for their great flexibility and efficient fabrication. A wide range of systems and additional components for commercial and residential construction makes it easy to meet individual customer needs and different technical requirements, for example on thermal insulation, accessibility and burglary resistance. A design principle across the range of systems and design depths, the utilisation of standardised parts and well-thought-out design details provide for a fast, process reliable manufacture and an extremely efficient fabrication.

Go to product

Go to product
Maximum flexibility

The versatile door systems impress with their individual design freedom, highest sustainability standards and flexibly adaptable solutions for thermal insulation, security and barrier-free construction.

Safe and fault-tolerant production

As a single system can be used to create house and property doors for a wide range of requirements, heroal fabricators benefit from standardised processing, identical production steps and machine settings, and thus from reliable production processes.

Low production times and costs

Production-optimised profile designs, reversible panel fastening, innovative heroal technologies and the universal punch result in reduced throughput times, the elimination of work steps and thus significantly reduced production times and costs.

Your advantages with heroal systems

Design variety

The door system is coated with heroal hwr powder coating for unique design variety and colour consistency with the heroal system portfolio. With heroal's profile bending and folding service, special shapes such as round, pointed and basket arches can be realised. The system is available in all common designs, opening types and construction variants.

Thermal insulation

The thermal insulation values can be easily adapted to the construction project thanks to flexible combinations of profiles with or without PU foam, glazing seals in highly insulating (HI) or standard versions, and with or without insulation inserts. The door system is made from recycled aluminium and is Cradle to Cradle Certified®.

Panic and escape doors

heroal door systems offer certified security for a wide range of requirements – from burglar-resistant solutions to resistance class RC 3 and RC 3-tested panic and escape doors in accordance with DIN EN 1627 and DIN EN 1125. They meet the highest security standards and are also designed for heavy-duty use.

Facade integration

The heroal D 72 project door for high-traffic entrance areas can be ideally integrated into the versatile heroal C 50 facade system – for harmonious building envelopes.

Universal fitting groove

Thanks to the universal fitting groove, fittings from different manufacturers can be selected according to requirements.

Universal punching machine

The profiles of all heroal D 72 door systems can be processed using the universal punching machine. Production times are significantly reduced and set-up costs are lowered.

Door closure variants

With approx. 160 door closures, including zero barriers, the heroal D 72 door system can be adapted to meet a wide range of technical requirements and individual customer specifications. For threshold-free solutions, the door system can be combined with the patented heroal DS drainage system.

Reversible panel attachment

The patented, reversible panel attachment is compatible with door panels from all common manufacturers and enables particularly time-saving, reliable production. The panel is clipped onto the profile; no adhesive is required. Also reversible on both sides with the heroal D 72 PF EM door system.

Reliable manufacturing

With one system, you can produce doors for homes and commercial properties for a variety of requirements using the same tools and machine settings. The design principle, which spans different systems and construction depths, ensures reliable manufacturing with few complaints.

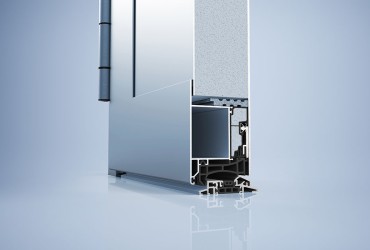

Efficient door leaf profiles

The heroal D 72 PF EM door leaf profiles are based on the heroal D 72 system and enable particularly fast and efficient production with an identical set of tools. Thanks to a fixed internal stop (PF) and a design without a glazing bead, they are particularly easy to install (EM = Easy Mount).

Profile composite with insertion spring

The profile composite with insertion spring prevents distortion without additional cutting (heroal D 72 PF EM).

Greater efficiency at lower costs

As the same components are used for different frame and sash profiles in the heroal D 72 PF EM, storage costs are reduced to a minimum. Production and throughput times are also reduced, as certain steps in the assembly process are no longer necessary. For example, no additional processing of the door panels is required. At the same time, material is saved as the glazing bead is no longer needed.

Connection technology

heroal connection technology with nailable and pressable corner brackets, connector screws and sealant injection (heroal D 92 UD only) ensures fault-tolerant and reliable production. Spreader brackets make it particularly easy to align two mitre-cut profiles.

Vulcanised sealing frame

The vulcanised sealing frame of the heroal D 92 UD door system reduces the number of components/individual parts by up to 70% in the lower door area.

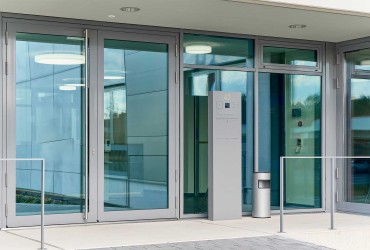

Commercial and residential front door system heroal D 72

Video: Advantages of the heroal D 72 front door and commercial door system

The heroal D 72 door system offers a large selection of sash and frame profiles and is characterized by unique design options.

heroal front door configurator

Create your own heroal Les Couleurs® Le Corbusier® front door together with your customers using our front door configurator. A variety of models, casement types, hinges and handle designs are available. Try out the different Le Corbusier colour combinations and integrate the latest technologies.

Would you like to integrate the heroal front door configurator into your website? No problem. Get in touch with us today.

Try out the front door configurator > Request the front door configurator >

Which door system is right for me?

Here you can see an overview of the different heroal door systems. Commercial doors, house doors and fire doors with various specifications, including the matching door fittings.

heroal door systems

heroal D 92 UD

The variable and efficient front door system

heroal Les Couleurs® Le Corbusier® Front Door

heroal D 72 - Front door system

Door system with maximum flexibility

heroal D 72 RL - Front door system

Door system with rounded outer contour

heroal D 72 CL - Front door system

Door system with slanted outer contour

heroal D 72 PF EM

Door sash profile for a fast and efficient fabrication

heroal D 65

Economical door systems for meeting high demands in terms of operating comfort and burglary resistance

heroal D 72 - Commercial door system

Commercial door system for high-traffic entrance areas

heroal D 72 RC 3 Panic door

RC 3 certified door solution for emergency exits and escape routes

Fire protection - Door systems

heroal D 82 SP

Ideal system solutions for fire and smoke protection elements

heroal D 82 FP

Ideal system solutions for fire and smoke protection elements

heroal FireXtech D 93 FP 30 CE

Fire protection door system with EI2 30 classification

Door fittings

heroal DF

Fitting technology for commercial and front door systems

Download brochure

You will find all the information you need about door systems in our brochure.

Brochure heroal door systems D 72

Brochure heroal door systems Les Couleurs® Le Corbusier®

Brochure heroal door systems D 92 UD
