Fire protection systems

Create an optimum basis for fire and smoke protection for your building projects with system solutions from heroal.

Fire protection systems

In order to meet increasing requirements for fire protection, heroal continuously works to further develop its fire protection systems for both private and commercial buildings. heroal offers fire protection systems for a wide variety of applications – both indoors and outdoors. Our product portfolio ranges from fire protection doors, fire protection windows and curtain walls to compatible fire protection glass. heroal’s fire protection systems are tested up to classification EI 30 and thus meet European standards.

Aesthetic design and integration

heroal fire protection systems enable high-quality, seamless design – with concealed integrated protection components and smooth transitions between areas with and without fire protection. The seamless integration of the door into the façade ensures a harmonious overall appearance while meeting all the requirements of a functional door. The high-quality heroal hwr powder coatings, integrated closers and special shapes such as curved elements offer additional design freedom.

Safety for indoor and outdoor areas

Whether fire protection closures, fire protection façades, smoke protection solutions or protection against fire spread – heroal systems are comprehensively tested and certified. The door systems offer reliable fire resistance for 30 to 90 minutes – for indoor use with general building approval, for outdoor use with classification report and CE marking in accordance with EN 16034 and EN 14351-1. The heroal C 50 FP fire protection façade can be upgraded to a highly thermally insulated solution with the patented Fireblock insulator.

Flexible planning and efficient implementation

The modular system concept from heroal offers maximum flexibility for a wide range of property requirements – from single doors to façade solutions. Large elements up to 5 m high and threshold-free door solutions ensure a wide range of possible applications.

Referenzen

View all references >

heroal fire protection systems at a glance

heroal fire protection doors

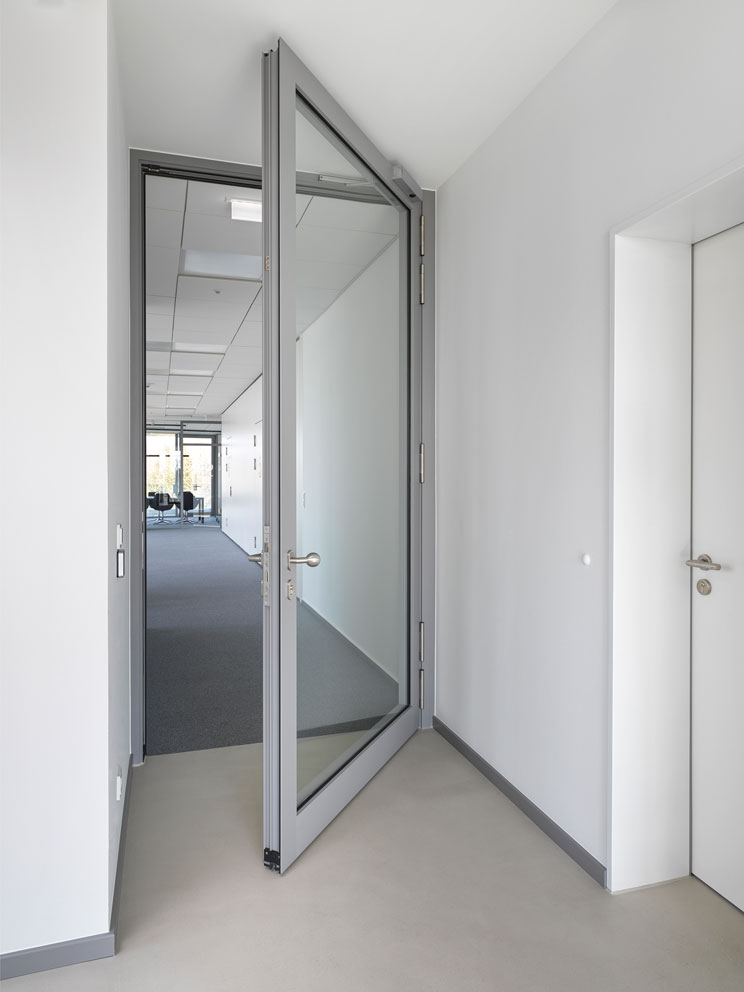

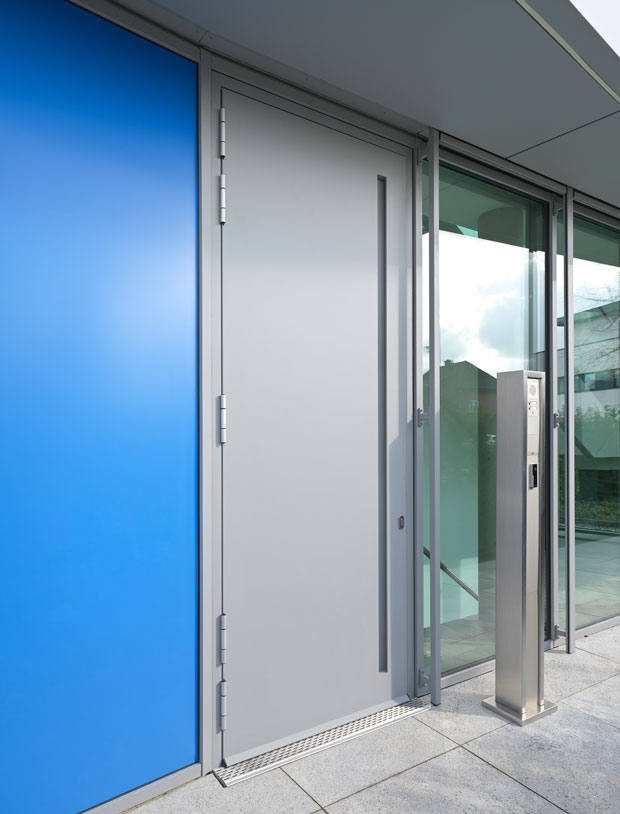

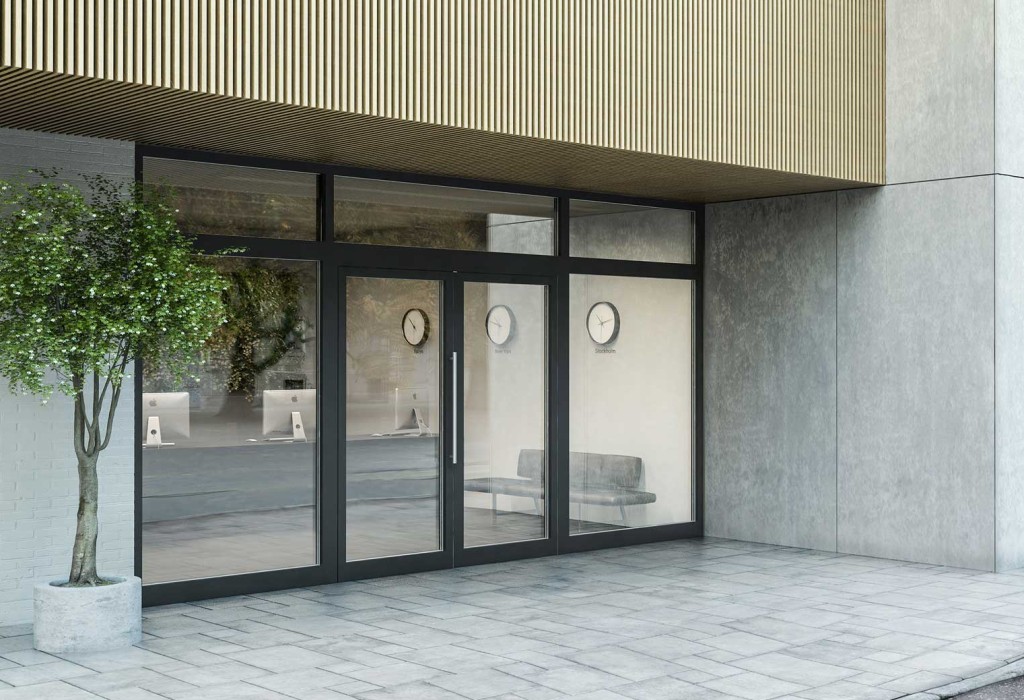

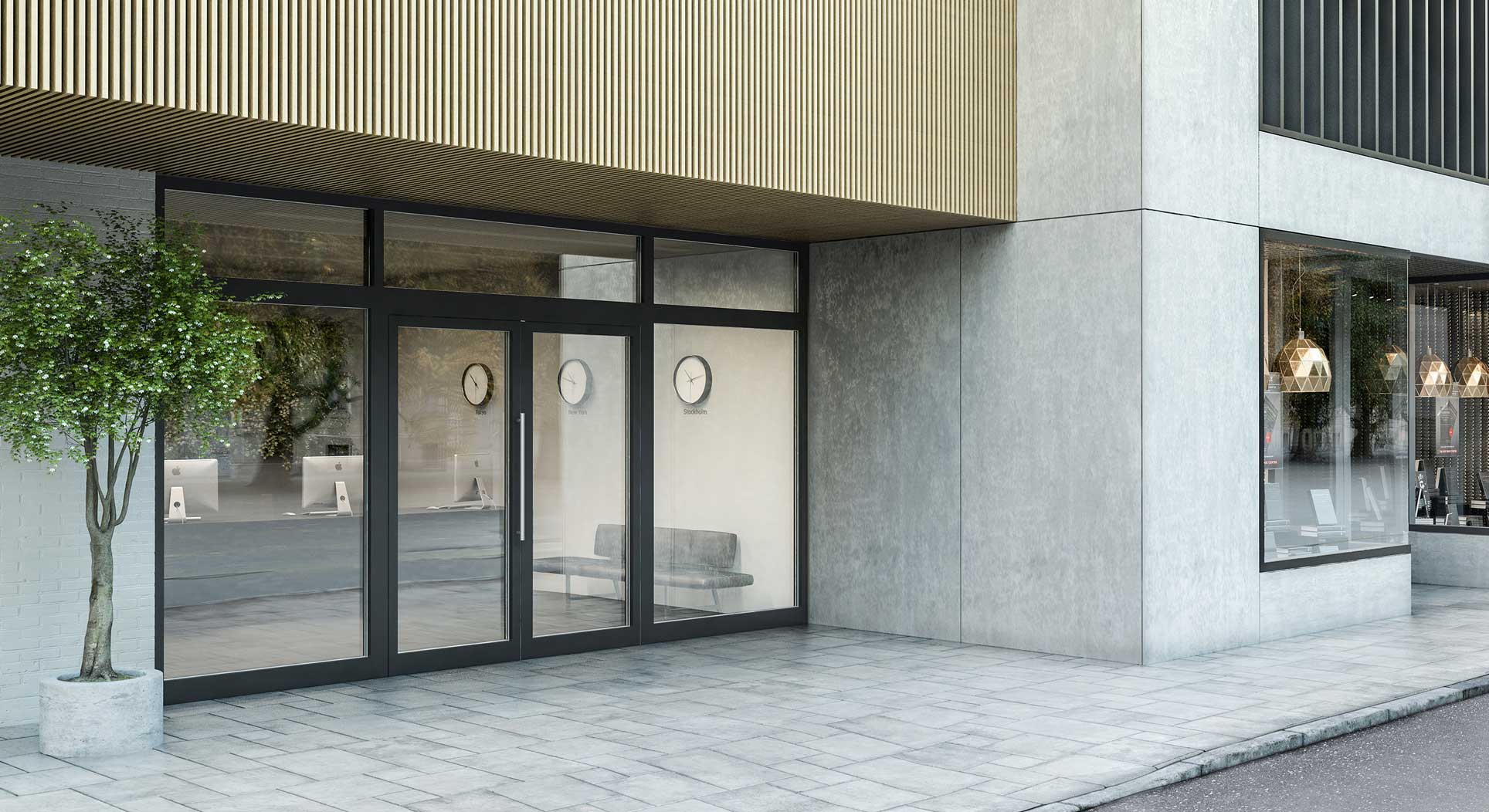

heroal FireXtech D 93 FP 30 CE

Fire protection door system with EI₂ 30 classification

The heroal FireXtech D 93 FP 30 CE fire protection door system is flexible and able to adapt to fire protection requirements thanks to its modular construction. The system stands out for its short processing time and outstanding static properties, and offers fire protection planners, architects and fabricators a system solution for outdoor use in private and commercial construction.

To product details >

heroal D 82 SP - Indoor application

Ideal system solutions for fire and smoke protection elements

The heroal D 82 SP 5-chamber profile system offers technically sophisticated solutions for fire prevention elements. The separation of cooling zone and functional track which is unique to heroal guarantees lasting application and functional reliability, even with frequent use. As well as national certification, there is also the possibility for certification in Austria, Switzerland and the Netherlands.

To product details >

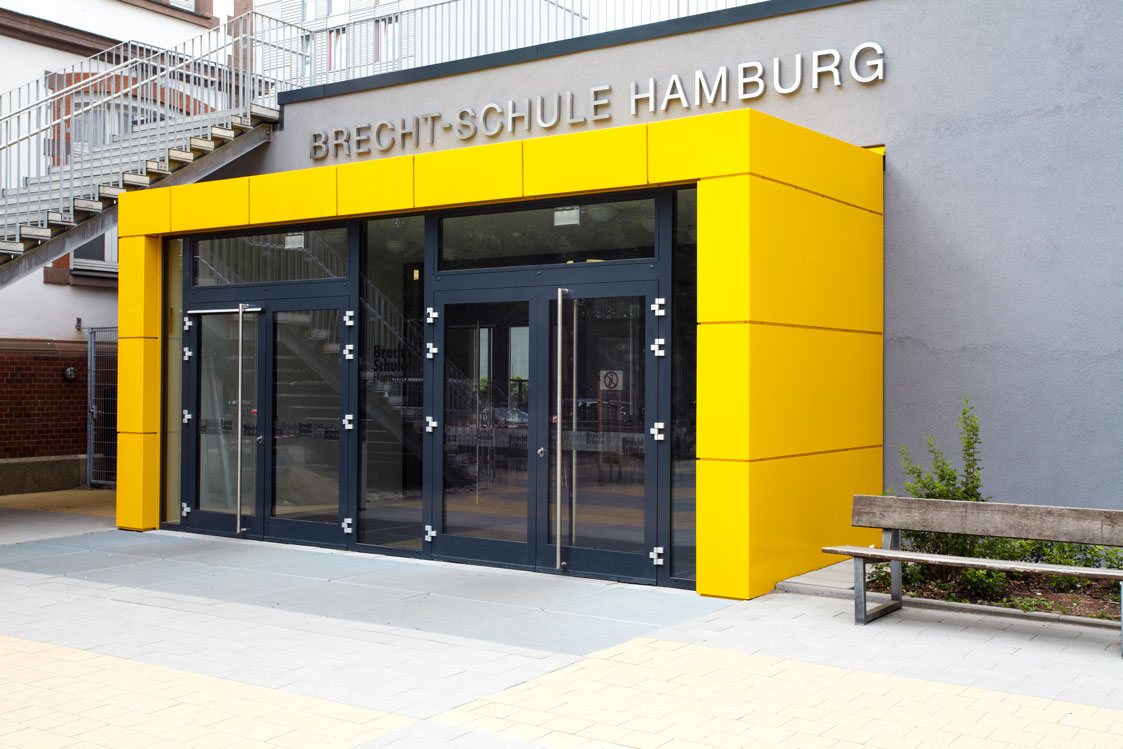

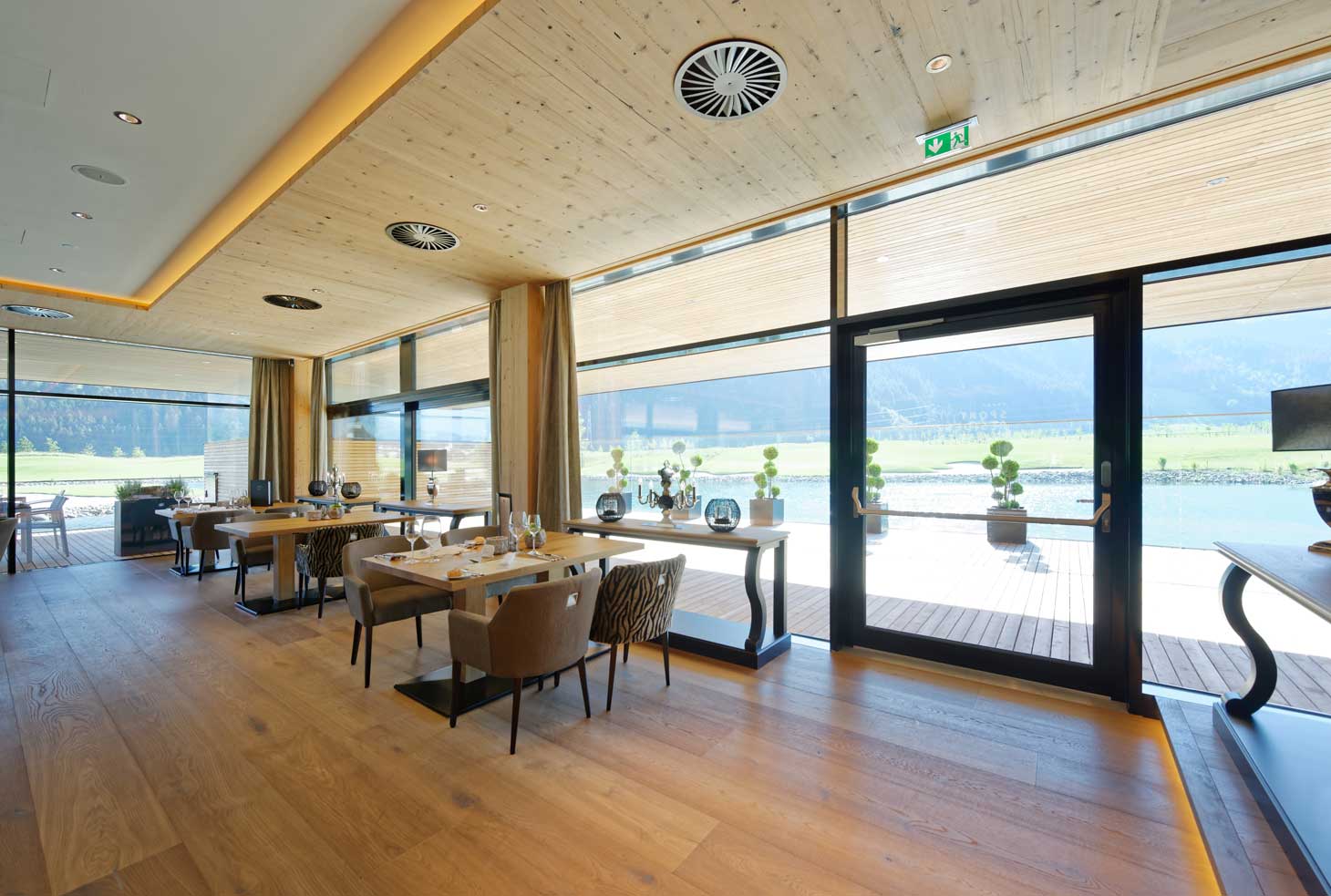

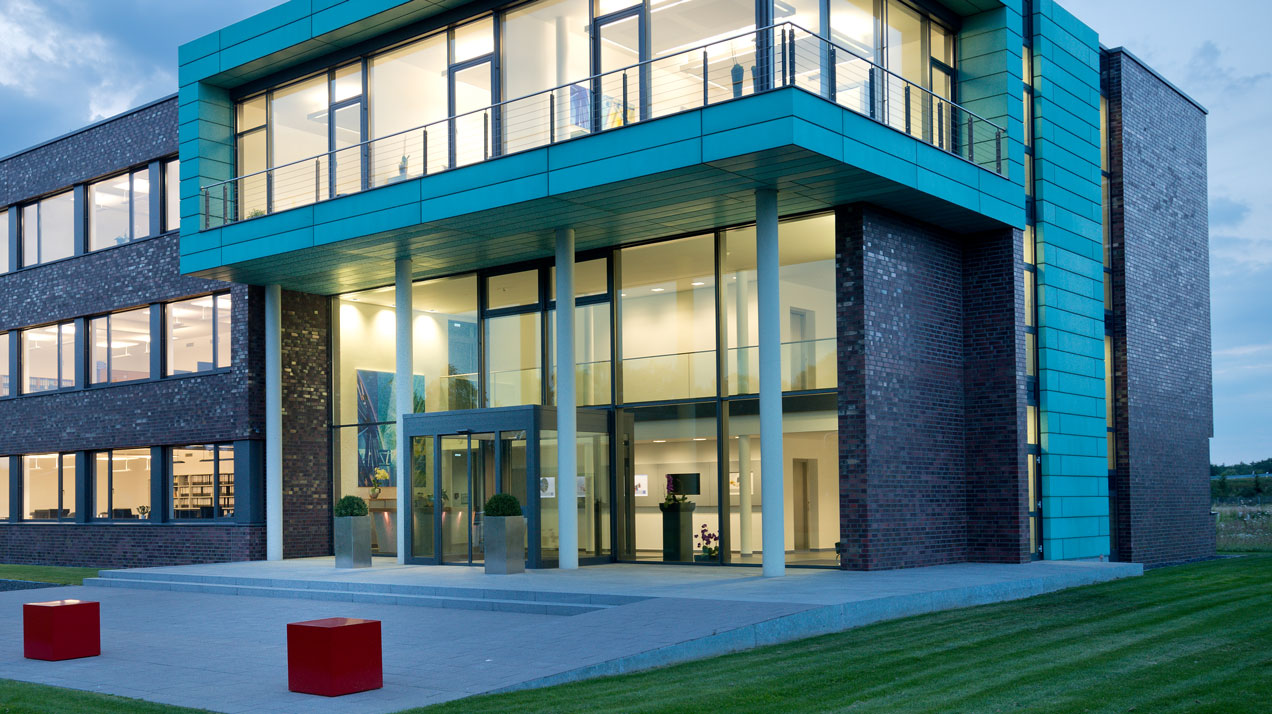

heroal D 82 FP - Indoor application

Ideal system solutions for fire and smoke protection elements

The heroal D 82 FP 5-chamber profile system offers technically sophisticated solutions for fire prevention elements. The separation of cooling zone and functional track which is unique to heroal guarantees lasting application and functional reliability, even with frequent use. As well as national certification, there is also the possibility for certification in Austria, Switzerland and the Netherlands.

To product details >

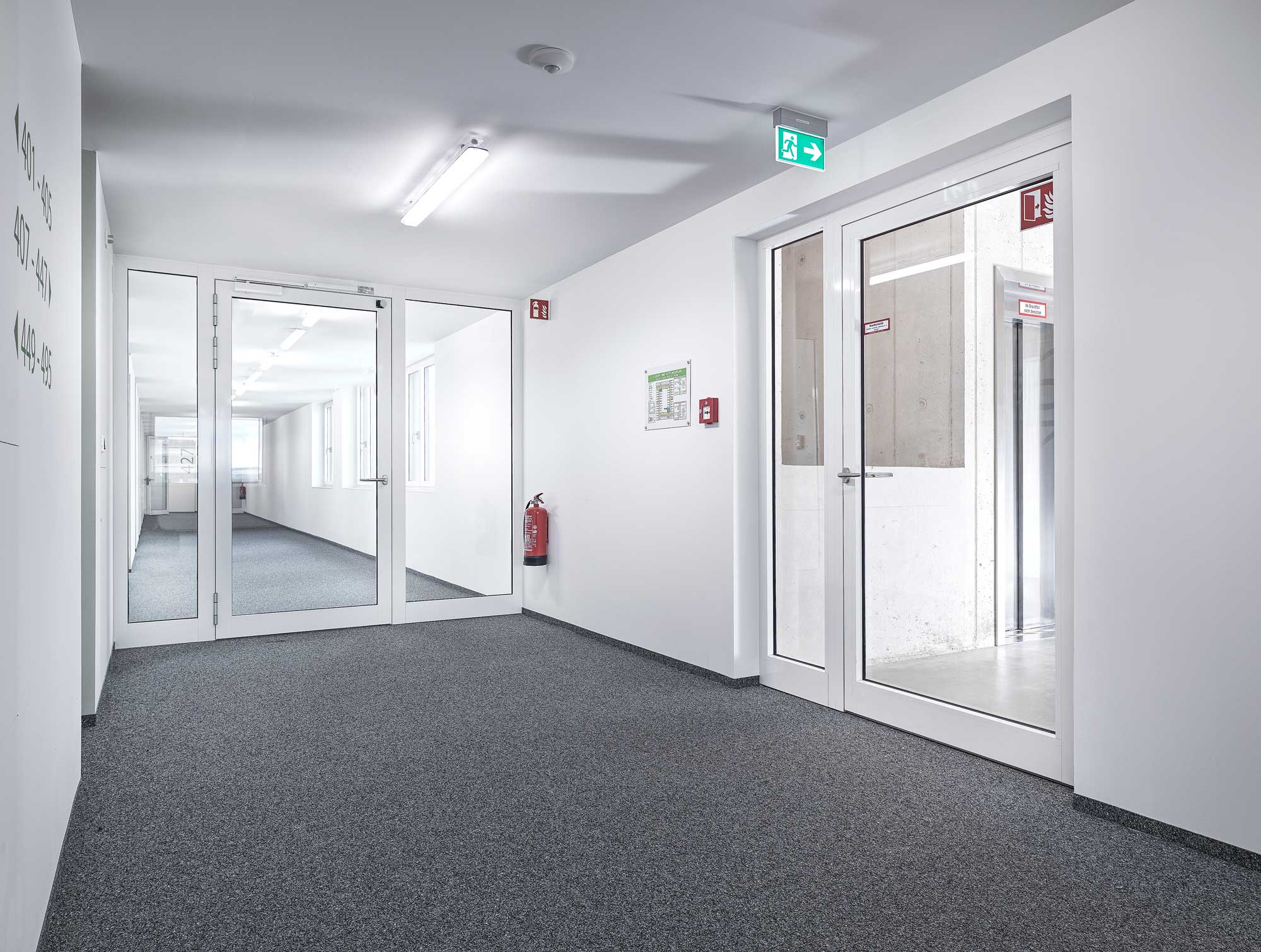

heroal D 65 C SP - Indoor application

Door system solution for heavily used passageways with smoke protection required

There are various different ways of combining smoke protection elements in indoor areas: with the heroal D 65 C SP profile system, it is possible to install single- and double-casement smoke control doors that have been tested to DIN 18095 RS 1/RS 2 and EN 1634-3 standards. Central glazing or an automatic hinged door drive system for smoke control doors are also available as an option. Versions with fixed glazing or dividing wall systems are also possible in a variety of designs. Clampable hinges enable quick and cost-effective production.

To product details >

heroal D 65 C FP - Indoor application

System solutions for E30/EW30 fire doors and fire-resistant glazing

The heroal D 65 C FP profile system's single- and double-casement fire doors, which have been tested to EN 1364-1 and 1634-1 standard and approved in accordance with the national classification report, offer various design options including side sections and transom windows. The profiles of the heroal D 65 C system provide a basis that can be extended to create fire protection barriers with just a few additional components. Versions with nonbearing protective wall constructions are also possible in a variety of designs.

To product details >

heroal fire protection windows

heroal W 65 FP

Fire prevention window for Austria and the Netherlands

The heroal W 65 system provides a basis, which can be extended with just a few additional components to make an extremely economical fire prevention window. The single-casement fire prevention windows of the heroal W 65 FP system, which are tested and approved according to the Austrian standards ÖNORM EN 1364-1 and 1634-1, provide numerous design options.

To product details >

heroal fire protection curtain wall

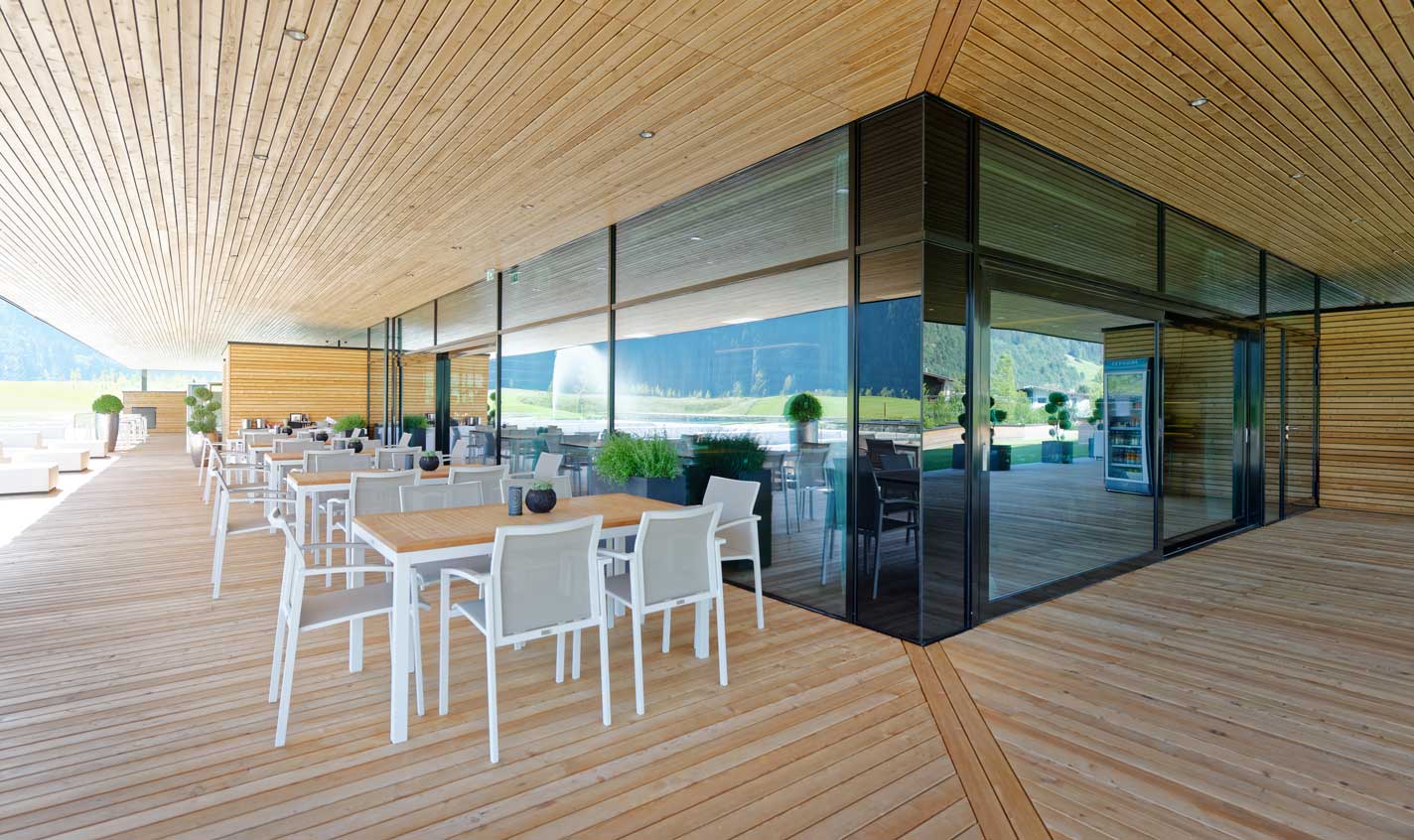

heroal C 50 FP

The system solution for fire protection façades

The heroal C 50 FP fire protection curtain wall system requires a CE marking and has been tested in accordance with the EN 13501-2 standard as a curtain wall by the ift Rosenheim testing institute. All fire protection components are concealed within the construction, enabling an invisible transition to façade areas without protective requirements.

To product details >

Tailored support for architects

heroal architectural consultants can provide you all-encompassing consulting. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

Request support for architects > Request on the phone >

Successful together with sustainable solutions

Holistic solutions

heroal offers perfectly coordinated system solutions for the entire building envelope with just one point of contact.

Design freedom

A wide range of surfaces, exclusive colours and customised special shapes offer maximum design freedom.

Consistent appearance

Seamless interaction between all systems ensures a uniform appearance and consistent functionality.

Comprehensive services

Architects benefit from a 360° service – with personal advice, digital tools and technical support in every phase of the project.

Sustainable construction

Sustainability is an integral part of all heroal systems – with recycled aluminium and certifications for sustainable construction.

Durable surfaces

The highly weather-resistant heroal surface technology ensures durable, colour-fast systems with optimum colour consistency.

Special solutions

Versatile configurable systems and customised special solutions enable even complex project requirements to be implemented with precision.

Quality from Germany

heroal manufactures all systems in Germany – using state-of-the-art technology, the highest standards and the reliability of a family-run company.
